html5中使用canvas绘制两点弧线箭头

发布网友发布时间：2022-05-10 21:05

共2个回答

懂视网时间：2022-05-12 04:45

这篇文章给大家分享的内容是关于html5 canvas用来绘制弧形的代码实现，有一定的参考价值，有需要的朋友可以从参考一下，希望对你有所帮助。

1.绘制弧形

context.arc(
 centerx, centery, radius,//圆点坐标和半径
 startingAngle,endingAngle,//起始弧度，结束弧度
 anticlockwise = false//默认顺时针
)

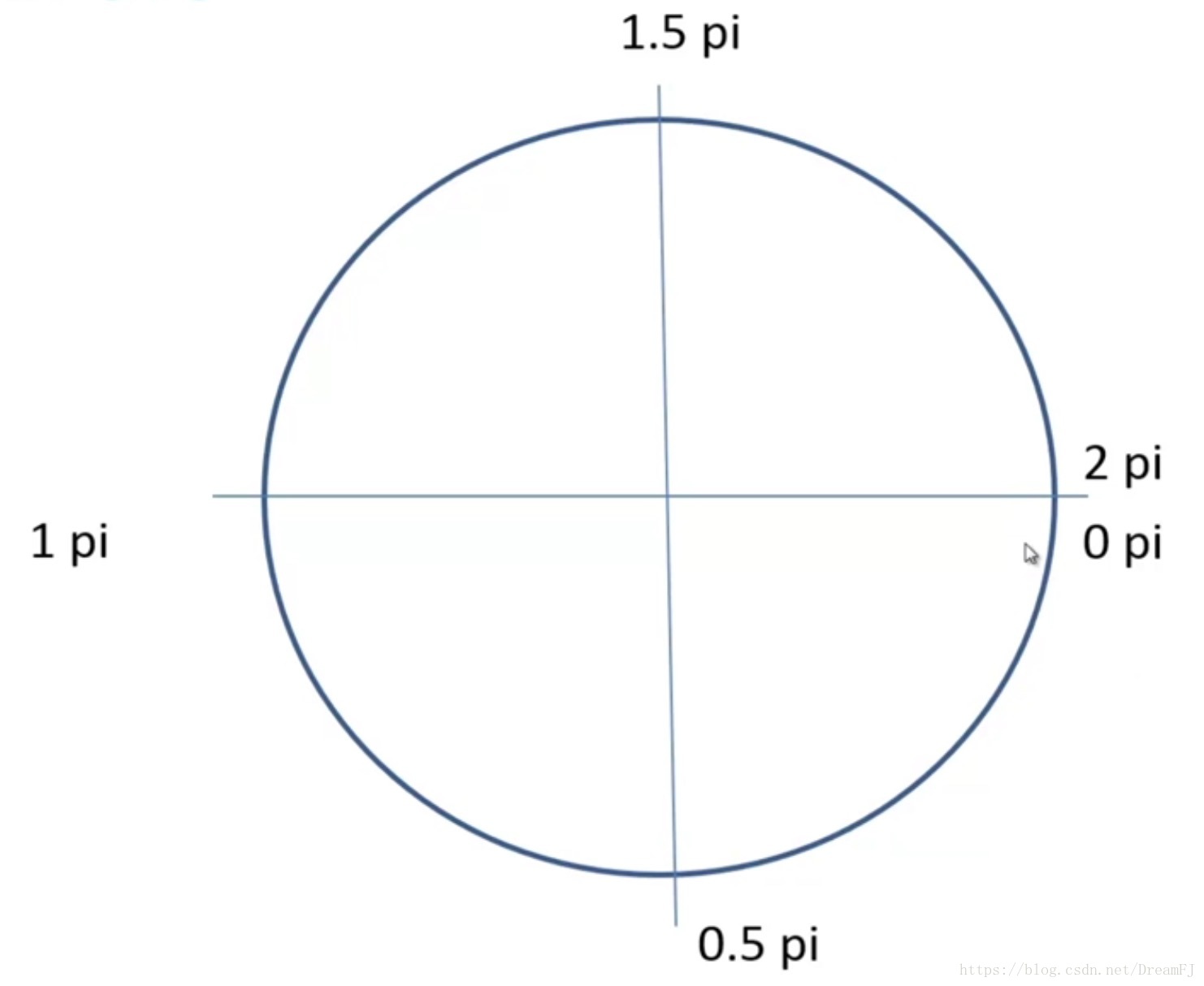

startingAngle和endingAngle对应的图

eg:

<!DOCTYPE html>
<html lang="en">

<head>
 <meta charset="UTF-8">
 <meta name="viewport" content="width=device-width, initial-scale=1.0">
 <meta http-equiv="X-UA-Compatible" content="ie=edge">
 <title>canvas画弧形</title>
</head>

<body>
 <canvas id="canvas">浏览器不支持canvas，请更换浏览器</canvas>
 <script type="text/javascript">
 window.onload = function() {
  var canvas = document.getElementById('canvas');
  canvas.width = 1024;
  canvas.height = 768;
  var context = canvas.getContext('2d');
  // 绘制状态
  context.arc(300, 300, 200, 0, 1.5 * Math.PI);
  context.lineWidth = 5;
  context.strokeStyle = 'blue';
  context.stroke();
 }
 </script>
</body>

</html>

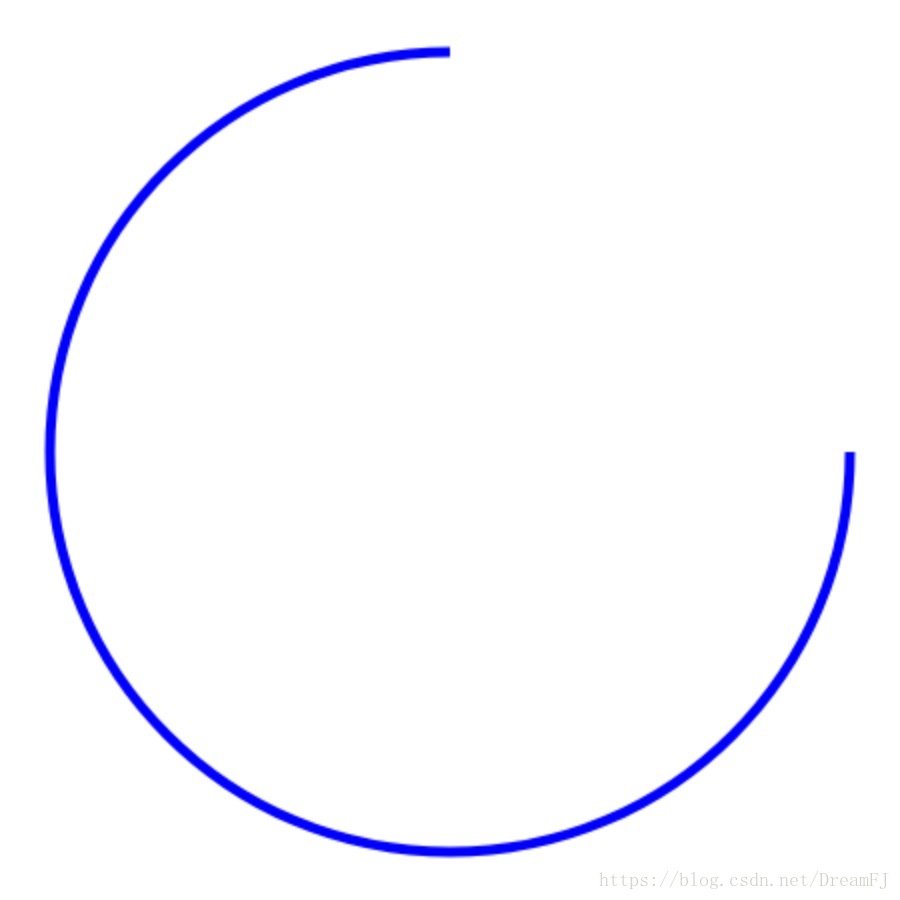

运行结果：

2.beginPath()和closePath()不用成对出现。

beginPath()代表重新规划一个路径；

closePath()代表要结束当前的路径，如果当前路径没封闭，会自动封闭当前路径，如果不想要封闭，则使用beginPath()就好了，不用使用closePath()。

closePath()对fill()不起作用。因为fill()也会自动封闭当前路径，然后填充。

相关文章推荐：

html5 video如何实现实时监测当前播放时间（代码）

H5中画布、拖放事件以及音视频的代码实例

热心网友时间：2022-05-12 01:53

回答完毕，采纳即可。

<!DOCTYPE HTML>
<html>
<head>
<title>yugi</title>
<meta charset=UTF-8 />
<style type="text/css">
</style>
<script type="text/javascript">
var Eye = function (a, b)
    {
    this.a = a;
    this.b = b;
    }
    Eye.prototype =
    {
        constructor : Eye,
        g : null,
        init : function ()
        {
        var canvas = document.querySelector ("canvas");
        this.g = canvas.getContext ("2d");
        return this;
        },
        drawEyelid : function ()
        {
        var g = this.g, a = this.a, b = this.b, R = 5;
        g.save ();
        g.beginPath ();
        g.fillStyle = "black";
        g.arc (a.x, a.y, R, 0, 2 * Math.PI);
        g.fill ();
        g.restore ();
        g.beginPath ();
        g.fillStyle = "red";
        g.arc (b.x, b.y, R, 0, 2 * Math.PI);
        g.fill ();
        g.restore ();
        g.beginPath ();
        g.strokeStyle = "blue";
        g.moveTo (a.x, a.y);
        g.lineTo (a.x, a.y);
        var r = 300;
        g.arcTo (a.x + r, a.y, b.x, b.y, r);
        g.lineTo (b.x, b.y);
        g.stroke ();
        g.restore ();
        g.beginPath ();
        g.strokeStyle = "pink";
        g.moveTo (b.x, b.y);
        g.lineTo (b.x, b.y);
        g.arcTo (b.x - r, b.y, a.x, a.y, r);
        g.lineTo (a.x, a.y);
        g.stroke ();
        g.restore ();
        g.beginPath ();
        g.fillStyle = "black";
        g.moveTo (b.x, b.y);
        g.lineTo (b.x, b.y - 2 * R);
        g.lineTo (b.x - 2 * R, b.y - 4);
        g.fill ();
        g.restore ();
        g.beginPath ();
        g.moveTo (a.x, a.y);
        g.lineTo (a.x, a.y + 2 * R);
        g.lineTo (a.x + 2 * R, a.y + 4);
        g.fill ();
        g.restore ();
        }
    };

    onload = function ()
    {
    var eye = new Eye (
    {
        x : 100,
        y : 50
    },
    {
        x : 550,
        y : 310
    });
    eye.init ().drawEyelid ();
    }
</script>
</head>
<body>
<body>
<canvas width="800" height="600">
你的浏览器不支持canvas标签
</canvas>
</body>
</html>

追问随意更改A，B两点后，箭头方向失效，可否再优化下
